FireFlex Systems Integrated Fire Protection Cabinets

FireFlex has been designing and manufacturing state-of-the-art innovative integrated fire protection systems that set the benchmark not just for water-based, but also for clean agents and FireFlex’s unique compressed air foam system.

FireFlex’s cutting-edge systems are an alliance between research, development, quality & durability.

Table of content


TOTALPAC 3 Systems

Designed with user-friendly features, the TOTALPAC® 3 units are customizable and use Viking Model F-1 Straight Through Deluge valve. With a new compact cabinet design for a smaller footprint, the system is also available with removable knockouts provided for electrical conduits connections, which implies no drilling is required in the cabinet.

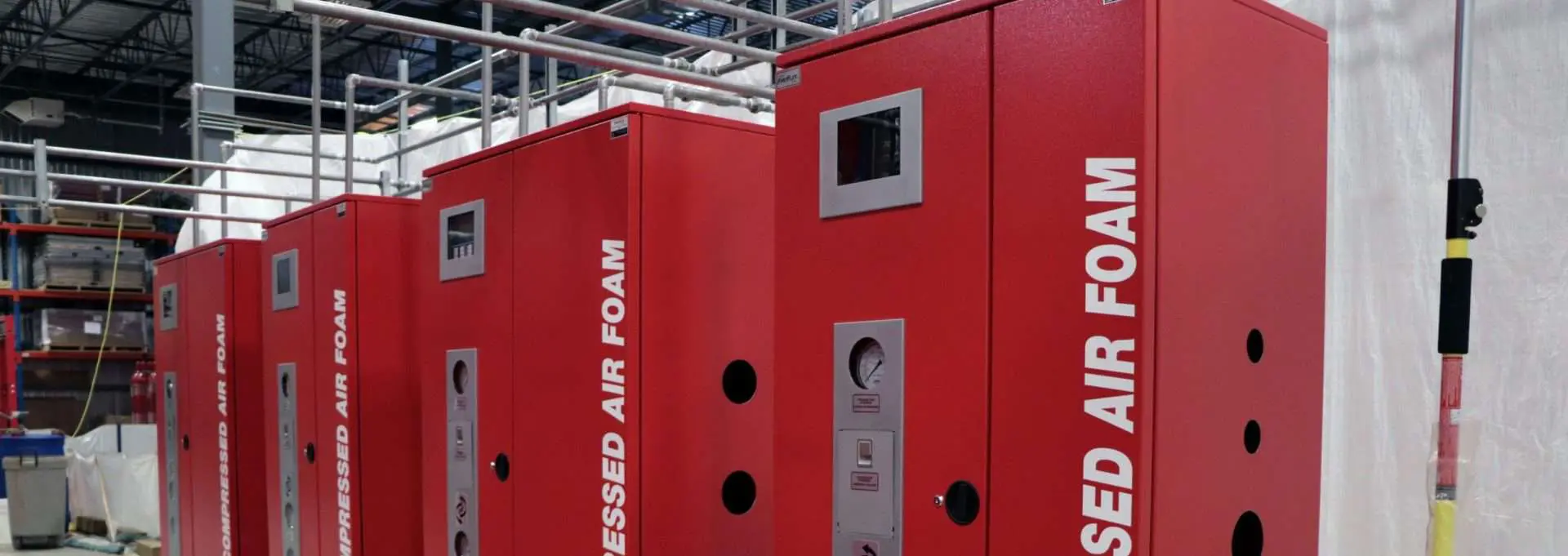

ICAF System

Compressed Air Foam Systems

Compressed air foam (CAF) is generated by the combination of compressed air, water and foam concentrate in the right proportions, to create a homogeneous foam solution similar to shaving cream. CAF is delivered with high momentum through a fixed piping system and distributed over the hazard via an approved discharge device.

FireFlex DUAL

Combined Automatic Sprinkler & Clean Agent Systems

FireFlex® DUAL is a combined automatic sprinkler and clean agent fire integrated suppression system. Designed with user-friendly features, the units are easy to install and maintain.

FireFlex 1230

Clean Agents Systems

Using Novec™ 1230 Fire Protection Fluid, clean agent systems can protect water sensitive hazards. Designed with user-friendly features, the FIREFLEX® 1230 units are easy to install and maintain. It’s also an environmentally safe long-term solution with lockable doors to avoid unauthorized handling.


Corrosion Inhibiting Systems

Nitrogen-based systems inhibiting electrochemical, galvanic and microbiologically influenced corrosion (MIC), protecting against freeze-ups and ice plugs. The TOTALPAC® N2 unit is available in multiple configurations: non, single or double interlocked preaction, Surefire and FireCycle or dry pipe types, all in sizes from 2” to 6” diameter.


Vacuum Fire Protection Technology

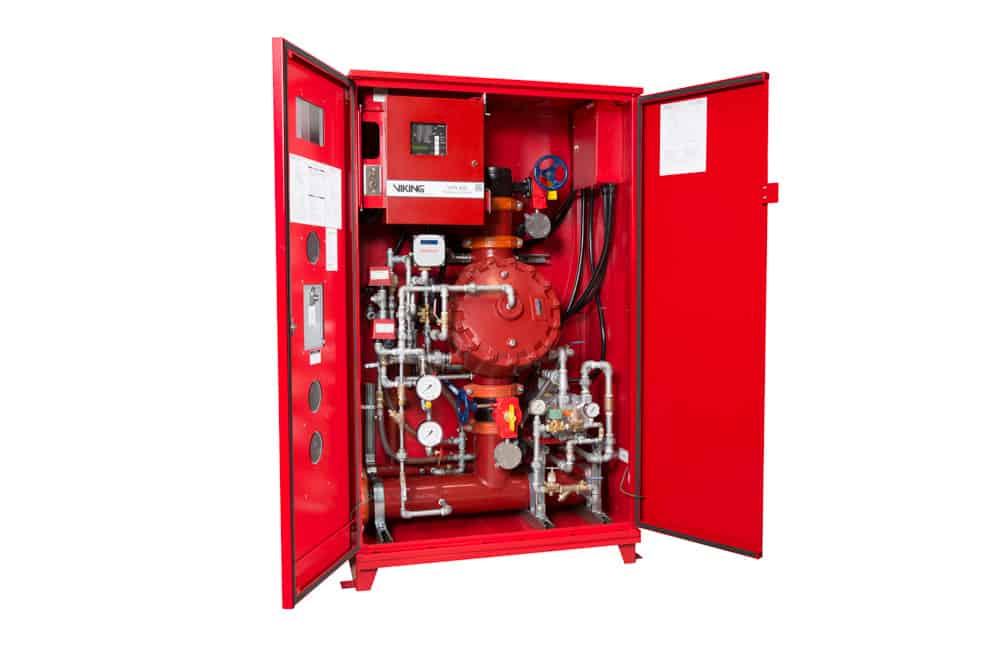

Fully assembled, factory tested and ready to be connected to the water supply and piping network, system includes all control valves, a vacuum pump, release control panel and the unique FireFlex FLX-PC Vacuum Pressure Controller which constitutes the heart of the system.


Outdoor Installations Systems

FireFlex Systems rises to the occasion to address specific industry needs and to provide innovative fire protection solutions adapted for challenging applications. Designed with user-friendly features, the TOTALPAC® X units are easy to install and maintain.

Industry Standards & Affiliation

Viking systems are designed and installed exclusively according to NFPA standards. Our team uses products that are recognized by ULC and FM Approved standards. Viking Fire Protection also meets pre-qualification requirements by several recognized organizations
